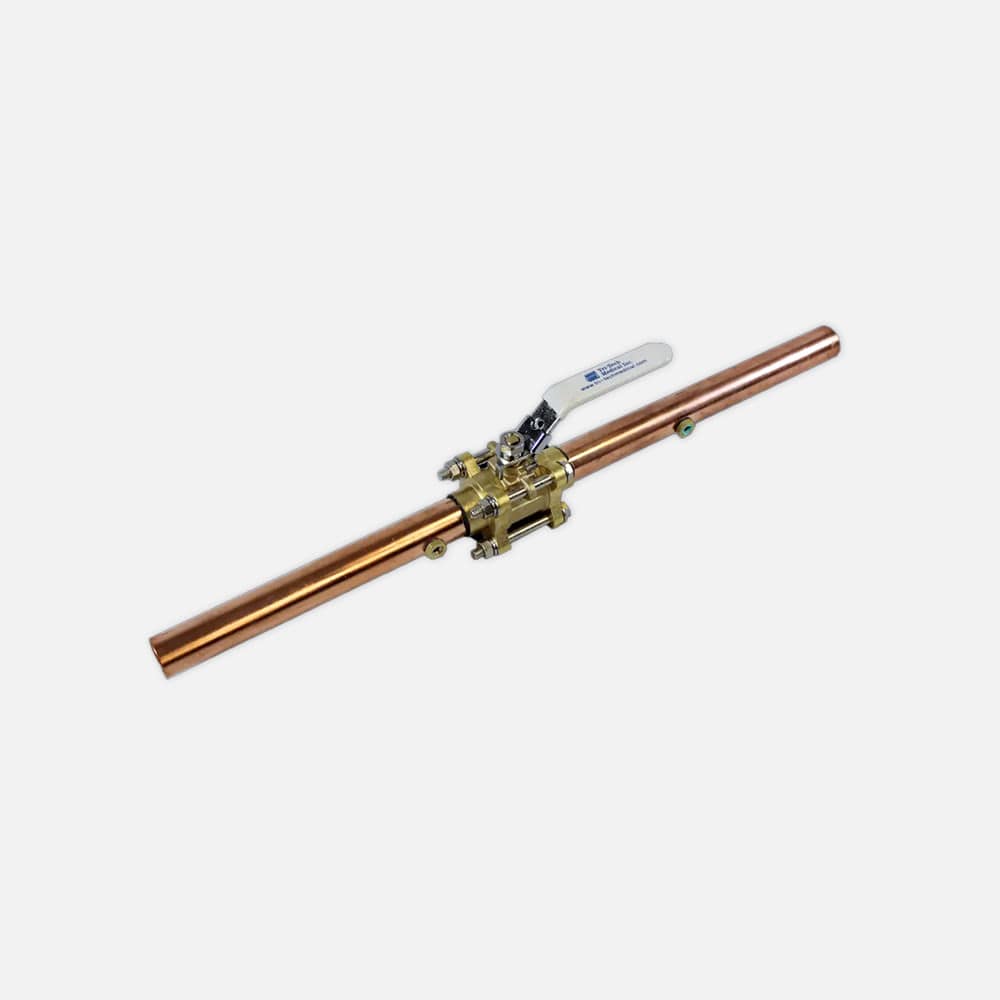

Tri-Tech Medical 55 Series Ball Valves with Extensions & Dual Gauge Ports

The Tri-Tech Medical 55 Series Ball Valves are engineered to meet the highest standards for gas delivery systems in veterinary clinics, healthcare facilities, and laboratories. These valves offer superior performance and reliability, featuring a forged brass body, dual gauge ports, and in-line repairability, making them an ideal choice for medical gas systems that demand durability and ease of service. Each valve is cleaned for Oxygen service, ensuring compliance with industry safety standards.

SKU: 55-02LH

Key Features and Benefits

  • Forged Brass Body: Constructed from high-quality forged brass for enhanced durability and long-lasting performance.
  • 3-Piece In-Line Repairable Valve: Designed for easy servicing without needing to disconnect the system, reducing downtime.
  • Dual Gauge/Purge Ports: Equipped with two 1/8″ NPT female gauge or purge ports, one on each side of the valve, allowing for easy pressure monitoring and system purging.
  • Full Port Ball Valve: Provides maximum flow efficiency with a 1/4 turn from fully open to fully closed.
  • Cleaned for Oxygen Service: Complies with the Compressed Gas Association (CGA) standards for Oxygen service, ensuring safety and preventing contamination.
  • Adjustable Packing with Blow-Out Proof Stem: Features an adjustable packing design and blow-out proof stem for added safety and reliability.
  • High Working Pressure Rating: Rated at 600 psi WOG (29 in/Hg vacuum), suitable for high-pressure applications in medical gas systems.
  • Locking Handles Included: Each valve comes with locking handles for secure operation and to prevent accidental valve manipulation.
  • Available in Various Sizes: Ranging from 1/2″ to 4″, these valves can accommodate various gas flow requirements.
  • Type K Copper Extensions: Comes with Type K copper tubing extensions for easy and compliant installation.
  • 100% Tested: Each valve undergoes rigorous testing to ensure optimal performance and compliance with NFPA 99 standards.

Specifications

  • Meets NFPA 99 Standards: The 55 Series Ball Valves are fully compliant with the National Fire Protection Association (NFPA) 99 standards for healthcare facilities, ensuring safety and regulatory compliance.
  • Federal Standard Compliance: Complies with Federal Standard WW-V-35B, Type II, Composition BZ, Style 1, for high-quality medical gas valve systems.
  • Oxygen Service Ready: Each valve is cleaned according to CGA Pamphlet G-4.1 standards, ensuring it is safe for use in Oxygen service applications.
  • In-Line Repairable: The 3-piece design allows for in-line repairs, reducing maintenance time and ensuring continued system operation.
  • Dual Gauge Ports: Equipped with two 1/8 NPT female gauge or purge ports for pressure monitoring and purging during installation or maintenance.

Warranty

The Tri-Tech Medical Genesysâ„¢ CC Series Manifold comes with a five-year parts and a one-year labor limited warranty.
