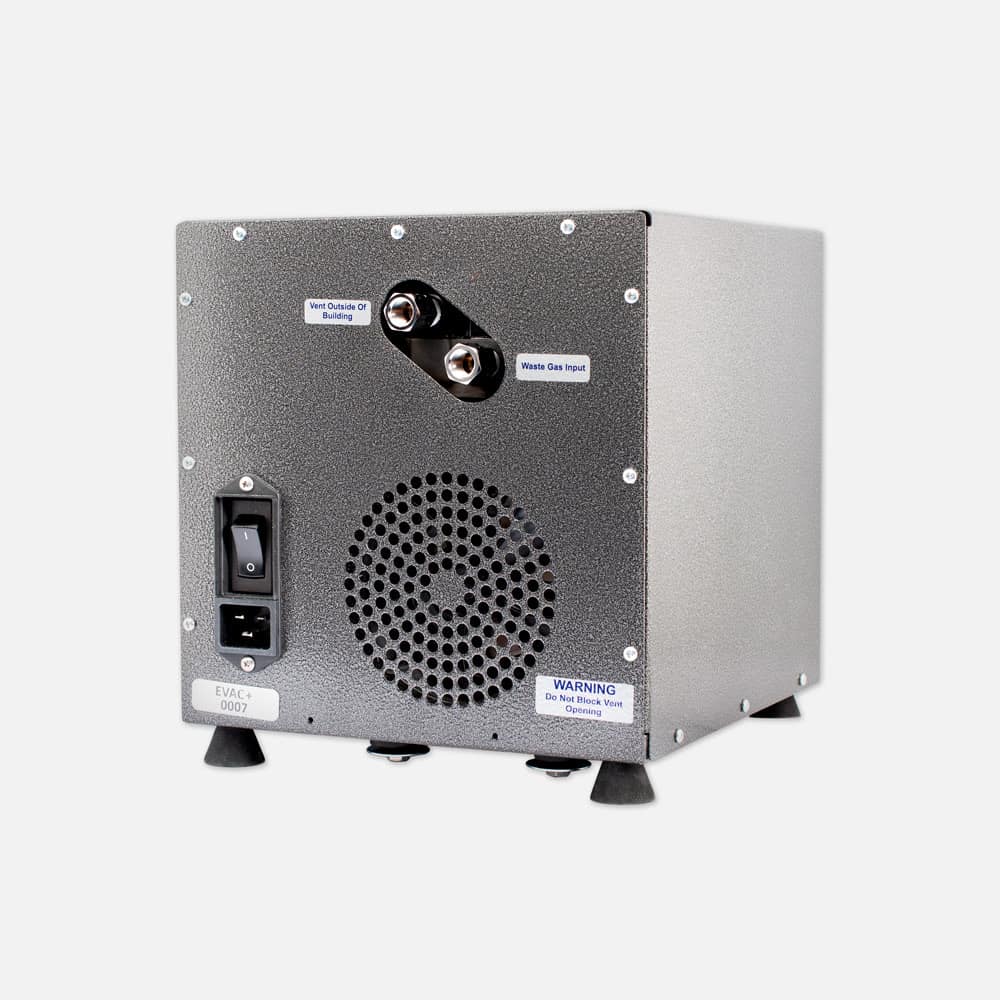

EVAC+ Active Evacuation and Medical Suction Pump

Ensure veterinary safety with the EVAC+ Active Evacuation and Medical Suction Pump, an essential component of Vetamac suction pump technology. Designed for efficient waste anesthetic gas removal, this system is reliable and maintenance-free, perfect for busy veterinary clinics.

Equipped with the advanced Evac+ Active Pump, it delivers efficient performance and reliability, ensuring effective gas evacuation. Installation is effortless with the included electrical cord, eliminating the need for hardwiring.

SKU: 81923

Key Benefits:

  • Easy Installation: No hardwiring is required, making setup quick and hassle-free.
  • Noise Reduction: Equipped with a silencer kit to minimize noise emitted at the exhaust outlet.
  • Durable Construction: Built with powder-coated 18-gauge steel for enhanced durability.
  • Vibration Control: Rubber mounts help reduce vibration, ensuring quiet and smooth operation.
  • Maintenance-Free: The EVAC+ requires no maintenance, adding convenience and reducing operational costs.

Maintenance-Free Operation

The EVAC+ Active Pump is designed for hassle-free use with no routine maintenance required, allowing your team to focus on patient care.

Compatibility:

This pump is compatible with all piped gas outlets and works seamlessly with veterinary anesthesia systems to ensure optimal performance and safety in your clinic.

Warranty Information:

The EVAC+ Pump is backed by a 12-month warranty from Vetamac, covering defects in materials and workmanship. Should any issue arise, Vetamac will repair or replace the unit free of charge within the warranty period.

Warranty Exclusions:

  • Damage from misuse, abuse, accidents, or tampering.
  • Consumable products such as plastic components.
  • Accessories or parts not manufactured by Vetamac.

Package Includes:

  • 8-foot electric cord for easy connection to a standard electrical outlet.
  • Tubing: 5 feet (x2) for connecting the pump to copper pipes.
  • Brass compression fittings and nylon tubing connections.
  • Hardware for mounting the shelf to wood wall studs and securing the pump to the shelf.

Specifications

Technical Specifications:

  • Pump Type: Gast oil-less pump with sound shield
  • Inlet/Outlet Size: ¼” NPT
  • Power Requirements: 120V, 60Hz
  • Electrical Amps: 6.6 Amps
  • Sound Level: Less than 60dB(A) at 5 feet (similar to a normal conversation)
  • Weight: 31 lbs
  • Dimensions: 11”x11”x10 3/8”
  • Construction: Powder-coated 18-gauge steel
  • Operating Temperature: Maximum ambient temperature of 104º F

Performance Specifications:

Maximum Evacuation Outlets (No Liquid Aspiration Outlets):

Pipe Length Evac. Outlet Flow Rate (3 LPM) Evac. Outlet Flow Rate (5 LPM) Evac. Outlet Flow Rate (7 LPM)
500′ 22 13 9
400′ 22 14 10
300′ 22 19 13

Maximum Evacuation Outlets + 1 Liquid Aspiration Outlet @ 100 mm Hg:

Pipe Length Evac. Outlet Flow Rate (3 LPM) Evac. Outlet Flow Rate (5 LPM) Evac. Outlet Flow Rate (7 LPM)
500′ Not Recommended Not Recommended Not Recommended
400′ 12 6 4
300′ 17 10 7

Maximum Evacuation Outlets + 2 Liquid Aspiration Outlets @ 100 mm Hg:

Pipe Length Evac. Outlet Flow Rate (3 LPM) Evac. Outlet Flow Rate (5 LPM) Evac. Outlet Flow Rate (7 LPM)
500′ Not Recommended Not Recommended Not Recommended
400′ 5 3 2
300′ 11 6 4

Note: Pipe length is defined as the total length of piping from the pump to each evacuation outlet combined. To ensure maximum performance, total pipe length should be less than 300 feet. There is no noticeable performance gain at 200 feet of total pipe length. All chart information is a guideline; performance may vary depending on the pipe configuration and evacuation outlet location.

Dimensions

Shipping dimensions

  • Length: 11″
  • Width: 11″
  • Height: 10.375″
  • Weight: 31 lbs
