Key Features and Benefits
- Individual LCD Touch Screen Displays: Each gas service is displayed on a 2.85” LCD touch screen, showing pressure conditions in 1 psi increments and providing clear, easy-to-read gas status.
- Tool-Free Programming: The touch screen interface allows for all alarm programming and setup without the need for tools, simplifying installation and adjustments.
- Customizable Emergency Instructions: Users can set up custom emergency preparedness instructions that appear on-screen when an alarm condition is triggered.
- Real-Time Monitoring and Alarms: Displays continuous monitoring of each gas, with green for normal conditions and red for alarm conditions, ensuring immediate visibility of issues.
- Last Event History: Logs the last 100 alarm events for each gas board, making it easy to review and analyze system performance.
- User-Programmable Set Points: High/low set points for gas pressure are fully customizable, allowing for precision monitoring based on your clinic’s needs.
- Multi-Language Support: The system is pre-loaded with NFPA and ISO gas labels and offers language support in English, English/French, and English/Spanish.
- Audio and Visual Indicators: Equipped with both audio and visual alarm signals, ensuring rapid response to any system alerts.
- Self-Diagnostic System: Displays error messages for ease of maintenance, helping to quickly identify and resolve issues.
- Ethernet Connectivity and Notifications (Optional): Optional Ethernet module provides alarm notification to up to 5 addresses, real-time graphic alarm displays, event history logs, and Modbus interface with building management systems.
Specifications

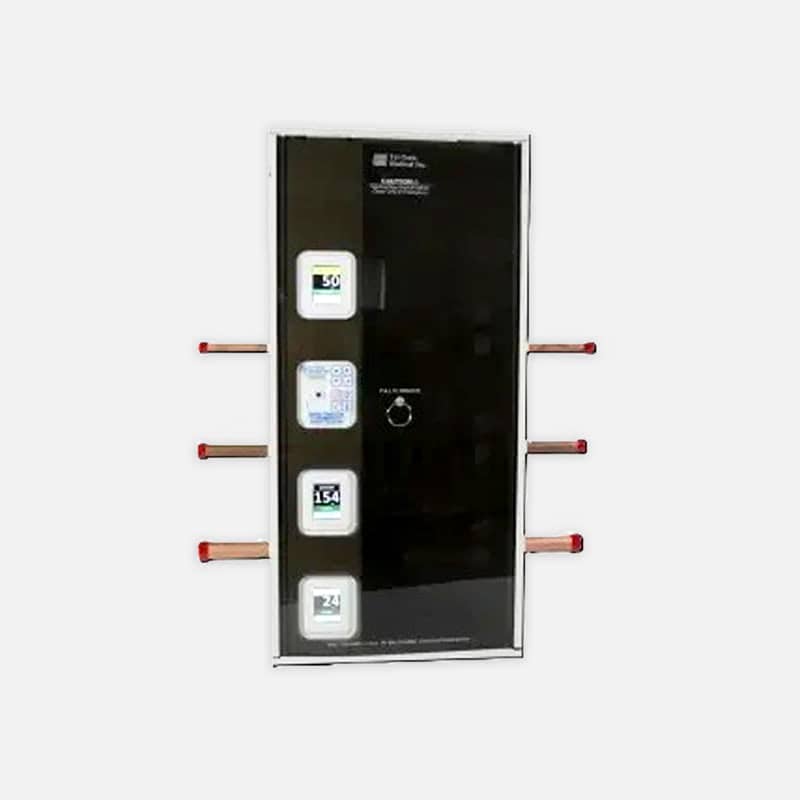

- Valve Construction: The zone valve panel includes dual gauge port full port ball valves, cast bronze construction with Teflon (TFE) seats and seals, rated for 600 psi (29 inHg vacuum). Each valve is 3-piece, in-line repairable, and comes cleaned for oxygen service.
- Flexible Installation: The valve box is constructed from 18-gauge steel and includes an adjustable plaster flange (1/2” to 1 1/8”) for easy mounting. The valves can be piped from left to right for flexible installation.
- Removable Window: The valve box includes a “smoked” translucent window on NFPA models and a white opaque window on ISO English/French models. The window is not replaceable while any valve is in the closed position, ensuring safety during maintenance.
- Gas Specific Sensors: Equipped with DISS nut and nipple gas-specific sensors, with error messages displayed if incorrect sensors or no sensors are attached.
- Pressure Monitoring: The gas readouts can be displayed in PSI, kPa, BAR, inHg, or mmHg, ensuring flexibility based on your clinic’s preferences and regulatory requirements.
- Alarm Repeat Feature: Factory set at 10 minutes, the alarm repeat interval is adjustable or can be turned off entirely for user customization.
