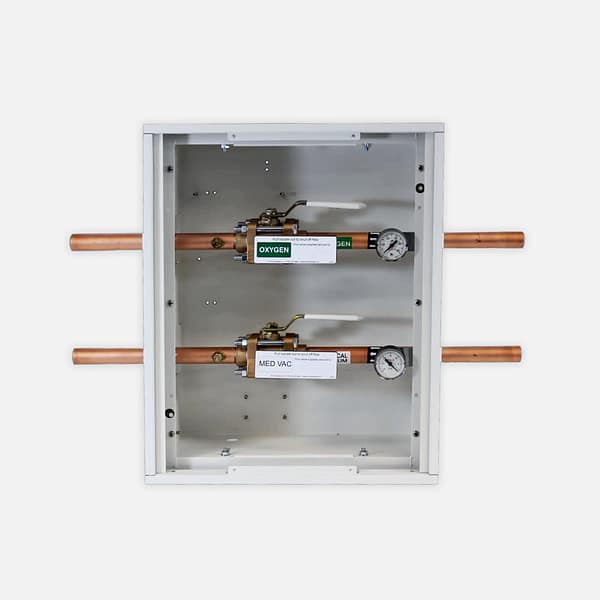

Tri-Tech Medical V Series Zone Valve Boxes

The Tri-Tech Medical V Series Zone Valve Boxes provide a reliable and compliant solution for controlling medical gas distribution in veterinary clinics and healthcare facilities. Engineered to meet NFPA 99 standards, these zone valve boxes are designed for ease of maintenance, flexibility, and long-term performance, ensuring the safe operation of medical gas systems.

SKU: VU120

Key Features and Benefits

  • NFPA 99 Compliance: Meets all NFPA 99 requirements, ensuring adherence to industry standards for medical gas safety and performance.
  • Flexible Piping Options: Valves can be piped from left to right or right to left, providing flexibility during installation.
  • Dual Gauge Port Full Port Ball Valves: All valves are equipped with dual gauge ports and are full port ball valves for maximum flow efficiency.
  • In-Line Repairable Valves: Features 3-piece valve bodies that are repairable in-line, minimizing downtime and disruption during maintenance.
  • High Pressure Rating: Valves are rated at 600 psi (WOG) with a vacuum rating of 29 in/Hg, ensuring robust performance under high-pressure conditions.
  • Blow-Out Proof Stem Design: Includes adjustable packing and a blow-out proof stem for enhanced safety and durability.
  • Accommodates Multiple Valves: Can house up to eight valves, ranging in sizes from 1/2” to 2”, offering scalability for various gas services.
  • Oxygen Service Ready: All valves are cleaned for oxygen service to meet strict safety standards.
  • Corrosion Protection: Plastic insulators protect valves from galvanic corrosion, extending the lifespan of the system.
  • Color-Coded Labels: Comes with NFPA and ISO color-coded gas labels in English, English/French, and English/Spanish for clear identification of gas services.
  • Pressure Gauges Included: Equipped with 1 1/2” diameter gauges for monitoring pressure and vacuum levels, clearly labeled with “USE NO OIL” for safety.

Specifications

  • Dual Gauge Port Valves: Constructed from cast bronze, each valve includes Teflon (TFE) seats and seals for reliable operation. The lever-type handle allows for quick quarter-turn operation.
  • Type K Copper Tubing: Valves come with copper tubing extensions, making installation easier and compliant with current standards.
  • In-Line Repairable: The 3-piece valve bodies allow for in-line repairs, reducing the need for system downtime during maintenance.
  • Durable Valve Box Construction: The valve box is made from 18-gauge sheet steel, painted for rust protection, and includes an adjustable plaster flange (1/2” to 1 1/8”) for easy mounting.
  • Removable Window with Safety Feature: The valve box includes a decorative frame with a smoked translucent window for NFPA models or a white opaque window for ISO models. The window cannot be replaced while any valve is in the closed position, ensuring safety during maintenance.
  • Gauges for Monitoring: Comes with 1 1/2” diameter gauges for precise pressure and vacuum monitoring. Dual scale gauges are not acceptable for U.S.A. installations.

Warranty

The Tri-Tech Medical V Series Zone Valve Boxes includes a five-year parts and one-year labor limited warranty for peace of mind and long-term reliability.
