Wall-mount Moduflex Compact Veterinary Anesthesia Machine

Rebreathing and small animal application

When space and reliability are your most important concerns, the wall-mount Moduflex™ Compact is the logical choice.

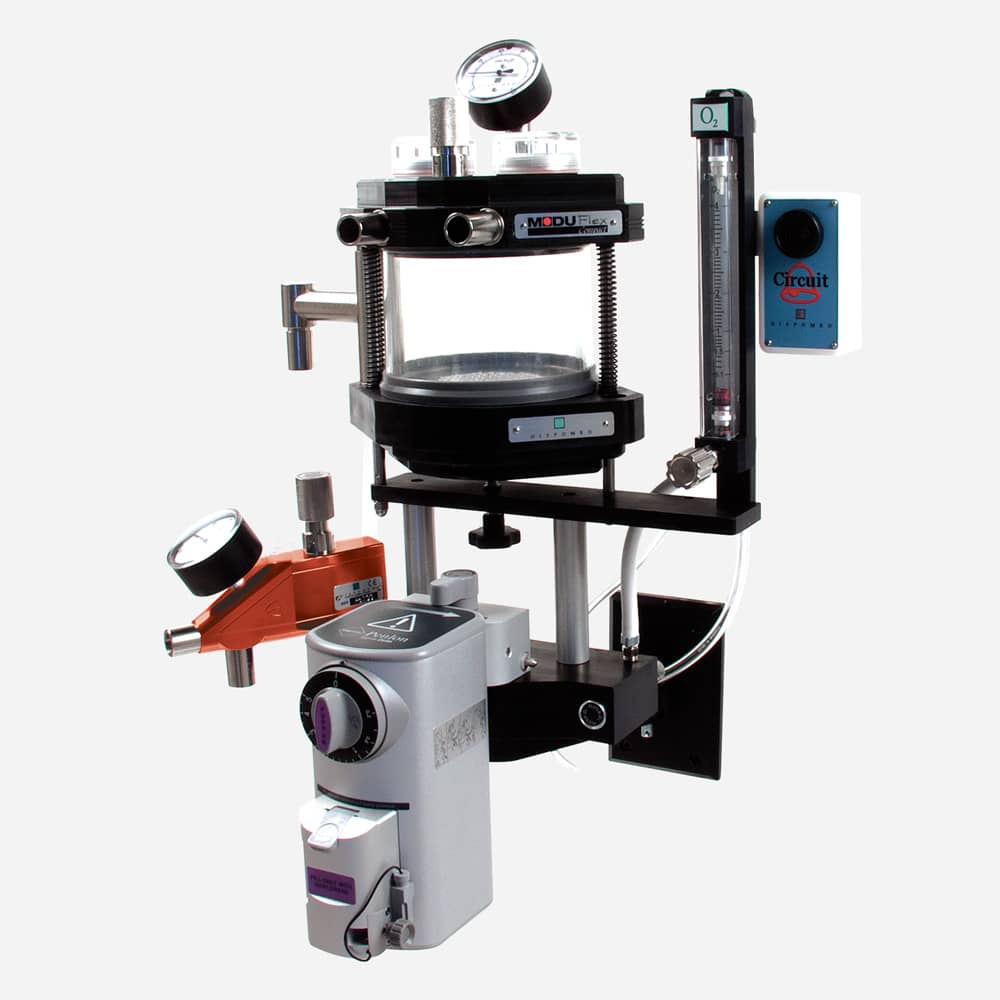

* Moduflex™ Compact illustrated. Circuit alarm, bain circuit adaptor and vaporizer are optional.

This product is currently out of stock and unavailable.

Add to quote
SKU:
Wall-mount Moduflex Compact Veterinary Anesthesia Machine

Standard features

  • 0.1 to 4 LPM O2 flowmeter.
  • Rotary float and large scale for easy readability.
  • Recessed flush valve to prevent accidental activation.
  • Quick-connect fresh gas outlet for easy and secure switching between breathing circuits.
  • SELECTATECTM compatibility manifold for easy and quick installation of one vaporizer.
  • 1500 ml CO2 absorber designed for easy and fast replenishing of sodalime. Condensation trap to prevent water build-up in sodalime. Easy and efficient gas sealing.
  • Momentary closed feature incorporated into our pop-off valve.
  • 5 year warranty.

Included with the Moduflex™ Compact

  • Y Patient Circuit
  • One 2 liter Rebreathing Bag
  • One 3 liter Rebreathing Bag
  • Fresh gas tube
  • krytox grease
  • Evacuation tube (150cm/5′)

Certified

CE Certified

Optional Features

Installation

Dimensions and installation sheets

Videos

How and When to Replace Soda Lime on Veterinary Anesthesia Machines

Short video to explain how and when to replace soda lime on veterinary anesthesia machines.

Verify your anesthesia machine before each procedure

Learn about a simple and easy method to verify your veterinary anesthesia machine before each procedure. Our technician will show you, step by step, how to make sure your machine is in working order. Following these easy steps will reduce the risks for your staff and your patients as well as help you to foresee possible breakages of your anesthesia machine.

How to fill and drain keyfill type vaporizers

Do you have questions about how to fill or empty your keyfill vaporizer? Watch this video and get useful tips from our expert on how to fill your TEC-3, TEC-4 and TEC-5 vaporizer.

Dimensions

Product dimensions

Length: 58.42 cm (23″)
Width: 71.12 cm (28″)
Height: 73.66 cm (29″)
Weight: 12.27 kg (27 lbs)

Shipping box dimensions

Length: 68.58 cm (27″)
Width: 68.58 cm (27″)
Height: 45.72 cm (18″)
Weight: 19.54 kg (43 lbs)
