Guide to Installing, Filling, Draining, and Removing a Vaporizer

1. Prepare the Equipment

Gather the vaporizer, bolts, washers, and a 5 mm Allen wrench.

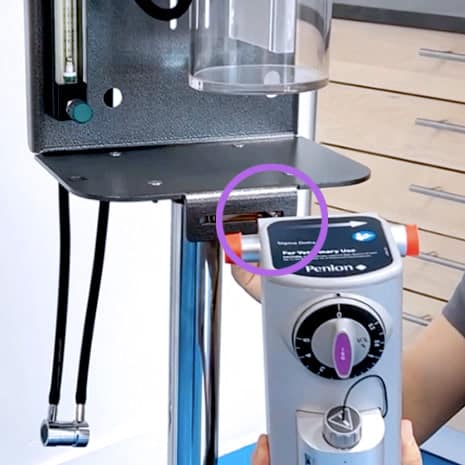

2. Mount the Vaporizer

Securely attach it to the front of the chassis using the provided bolts and washers.

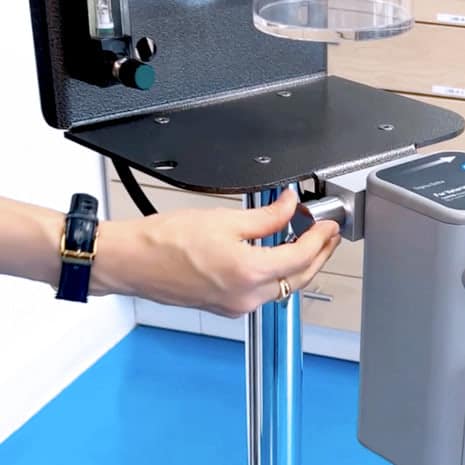

3. Connect Adapters

Attach the inlet and outlet adapters to ensure proper airflow.

1. Open the Cap

Carefully remove the vaporizer cap. Make sure the drain pin is tight before filling.

2. Add Isoflurane

Pour isoflurane into the vaporizer while monitoring the gauge to avoid overfilling. Wait 15 minutes after the initial fill to come back and fill to the fill line.

3. Secure the Cap

Close the cap tightly to prevent leaks.

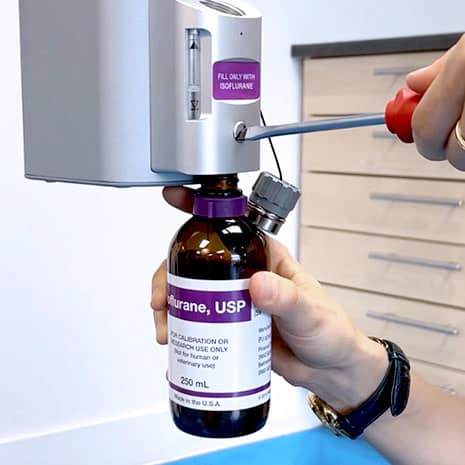

1. Loosen the Screw

Open the cap and loosen the screw to allow isoflurane to drain into a container.

2. Complete Draining

Ensure all liquid is drained, then tighten the screw and close the cap.

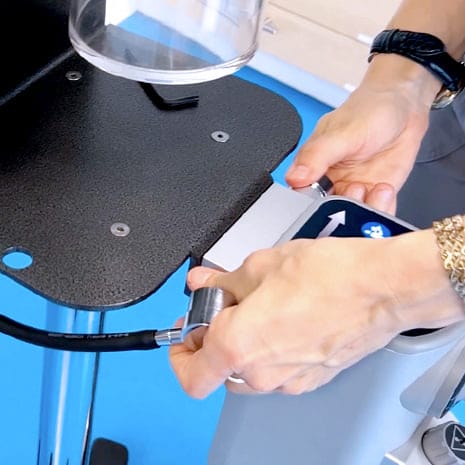

1. Disconnect Adapters

Remove the inlet and outlet adapters.

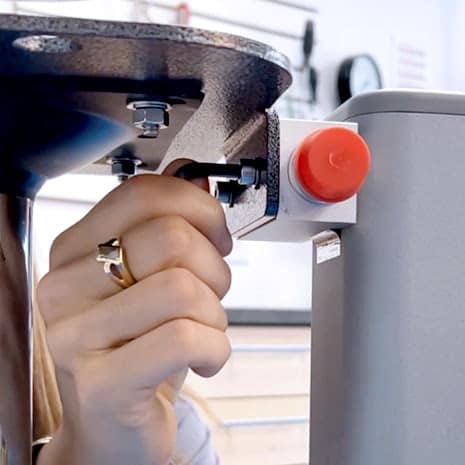

2. Unscrew the Bolts

Use the 5 mm Allen wrench to unscrew and remove the vaporizer bolts.

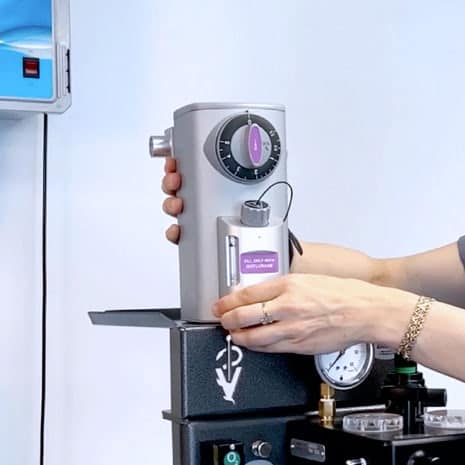

3. Detach the Vaporizer

Carefully lift the vaporizer from the chassis. Don’t forget to often clean the vaporizer well using a fresh gauze pad and ensure the cap O-ring is thoroughly cleaned.
