Understanding Dead Space in a Breathing Circuit

Dead space in a breathing circuit refers to the regions where exhaled and inhaled air overlap, potentially causing patients to rebreathe CO₂ if not managed properly. This is especially critical in anesthesia, where effective CO₂ clearance ensures safe patient outcomes.

Key Locations of Dead Space in Breathing Circuits

Here are four primary areas where dead space can develop within a breathing circuit:

1. Extended Endotracheal Tube: Any part of the endotracheal tube extending beyond the trachea increases dead space.

2. Circuit Elbows: Elbows in the breathing circuit can trap exhaled gases, adding dead space.

3. Connectors: Any additional connectors between the endotracheal tube and the breathing circuit contribute to dead space.

4. Y-Piece in a Y Circuit: At the end of a Y circuit, dead space may occur if inhaled and exhaled gases aren’t effectively separated.

Understanding Circuit Types and Their Impact on Dead Space

Y Patient Circuit

In a Y circuit, the tubes themselves do not contribute to dead space due to check valves on the absorber. These valves ensure that one tube is dedicated to inhalation and the other to exhalation, effectively separating the two flows. However, using smaller diameter tubes will not decrease dead space; it’s the circuit configuration that matters. Correct setup and maintenance of check valves are essential for minimizing dead space in Y circuits.

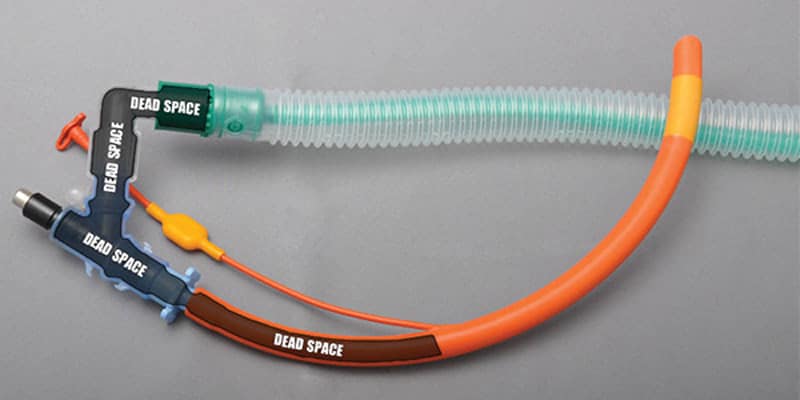

Bain Patient Circuit

In Bain circuits, dead space can increase if fresh gas flow (FGF) is not maintained at an adequate level. It’s critical to set the FGF above the patient’s tidal volume to prevent CO₂ accumulation. When the FGF is too low, exhaled CO₂ can accumulate, adding to dead space and posing a rebreathing risk. The flow rate must be regularly adjusted to match the patient’s needs for optimal results.

Universal F Patient Circuit

The Universal F circuit, originally designed for single-use in human patients, is gaining popularity in veterinary settings. Its advantages include improved heat recovery and gas humidification. However, if misconnected, the circuit can lose these benefits and increase dead space. Certain models have an unattached inhalation tube, which can inadvertently elevate dead space if not positioned correctly. Regular inspection of the tube configuration and ensuring a secure connection help reduce these risks.

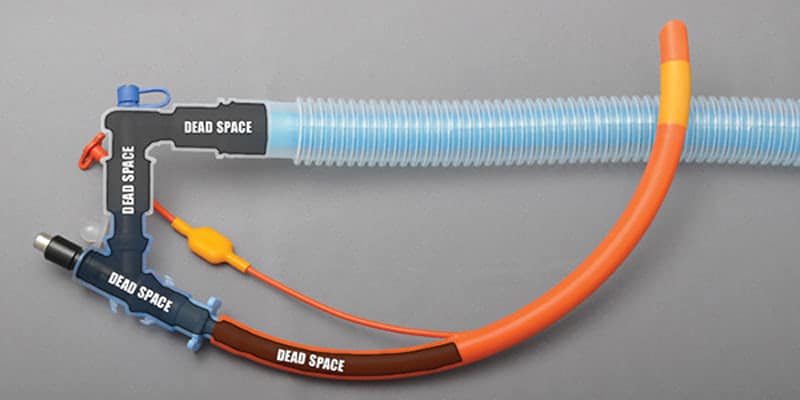

Coaxial Patient Circuit

A coaxial circuit, similar in structure to the Universal F, features an attached inhalation tube that ensures correct gas flow direction, making it an improvement over the Universal F design. This design virtually eliminates the chance of misconnection and optimizes dead space management. With a coaxial circuit, careful attention to tubing integrity and placement can further enhance patient safety by reducing dead space.

Best Practices to Minimize Dead Space and CO₂ Rebreathing

1. Optimize Fresh Gas Flow: Set the fresh gas flow above the patient’s tidal volume in circuits like the Bain to prevent CO₂ buildup. For non-rebreather systems, ensure the minimum oxygen flow rate is 200 to 400 mL per kilogram. Depending on the circuit, the flow may need to range from half to one and a half liters per minute. Adjust the flow rate to the specific patient’s size and needs.
2. Minimize Tube Lengths: Avoid extending endotracheal tubes beyond the trachea unnecessarily, as this increases dead space.
3. Select Appropriate Connectors: Choose minimal and properly sized connectors to reduce dead space between circuit components.
4. Routine Circuit Checks: Inspect the circuit for leaks and ensure all components are securely connected. This includes verifying the integrity of one-way valves, as they play a crucial role in preventing CO₂ rebreathing. Regularly check the valve function as part of both daily use and preventive maintenance protocols.
5. Regular Maintenance: Clean and maintain all breathing circuit components to prevent inefficiencies or damage that may elevate CO₂ rebreathing risks. This includes inspecting one-way valves during routine maintenance to ensure their reliability and effectiveness.

   These practices, combined with vigilance and proper circuit management, can significantly reduce dead space and the risks associated with CO₂ rebreathing in veterinary anesthesia.

In Summary

Understanding and managing dead space in breathing circuits is crucial for veterinary anesthesia safety. By selecting the correct circuit type, setting appropriate flow rates, and following best practices, clinics can minimize dead space and ensure optimal patient outcomes. At Vetamac, we’re committed to providing expertise and solutions for safe anesthesia care.
